General Information
|
|
Manufacturer
|
Schneider Electric SA |
|
Manufacturer Part Number
|
SMTL750RM2UC |
|
Manufacturer Website Address
|
http://www.schneider-electric.com
|
|
Brand Name
|
APC by Schneider Electric |
|
Product Line
|
Smart-UPS |
|
Product Model
|
SMTL750RM2UC |
|
Product Name
|
Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS |
|
Marketing Information
|

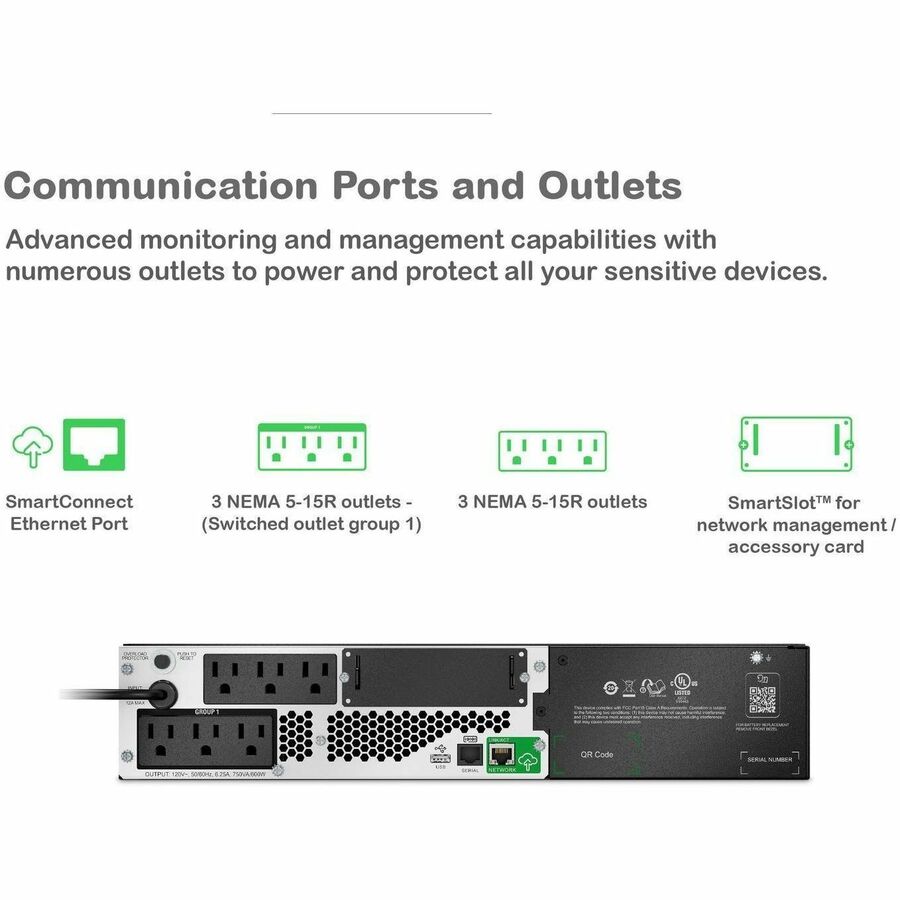

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 750VA line interactive 2U short depth rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-15P input and 6 NEMA5-15R outlets. This rackmount UPS is tower convertible with the mounting stabilizing feet (SMTL2USF sold separately). It offers cloud-based remote power monitoring, UPS firmware upgrades, remote diagnostics and proactive email notifications with recommended actions. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. It has a SmartSlot for optional Network Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMTL UPS has a 5-year warranty on the UPS and Lithium-ion battery. More from the Manufacturer |
|
Packaged Quantity
|
1 Each |
|
Product Type
|
Line-interactive UPS |
|
Technical Information
|
|
AVR
|
Yes |
|
Plug/Connector Type
|
NEMA 5-15P |
|
Receptacle Type
|
NEMA 5-15P |
|
Receptacle Detail
|
6 x NEMA 5-15R |
|
Number of Battery & Surge Outlets
|
6 |
|
Overload Protection
|
Yes |
|
Cord Length
|
8 ft |
|
Transfer Time
|
10 ms |
|
Phase
|
Single Phase |
|
Application/Usage
|
- Server
- POS Terminal
- Network Device
- Switch
- Router
- Network Hub
- Security System
- Communication System
|
|
Power Description
|
|
Load Capacity (VA)
|
750 VA |
|
Load Capacity (Watt)
|
600 W |
|
Input Voltage
|
120 V AC |
|
Input Voltage Range
|
82 V AC - 144 V AC |
|
Output Voltage
|
120 V AC |
|
Input Frequency
|
60 Hz |
|
Output Frequency
|
60 Hz |
|
Waveform Type
|
Sine Wave |
|
Surge Energy Rating
|
680 J |
|
Management
|
|
Network Management
|
SmartConnect |
|
Alarm
|
- On Battery
- Low Battery
- Configurable Delay
|
|
Controls/Indicators
|
|
Status Indicators
|
LED status indicators: Quickly understand unit and power status with visual indicators.
|
|
Interfaces/Ports
|
|
Serial Port
|
Yes |
|
Network (RJ-45)
|
Yes |
|
USB (HID Compliant) Port
|
Yes |
|
Battery Information
|
|
Battery Chemistry
|
Lithium Ion (Li-Ion) |
|

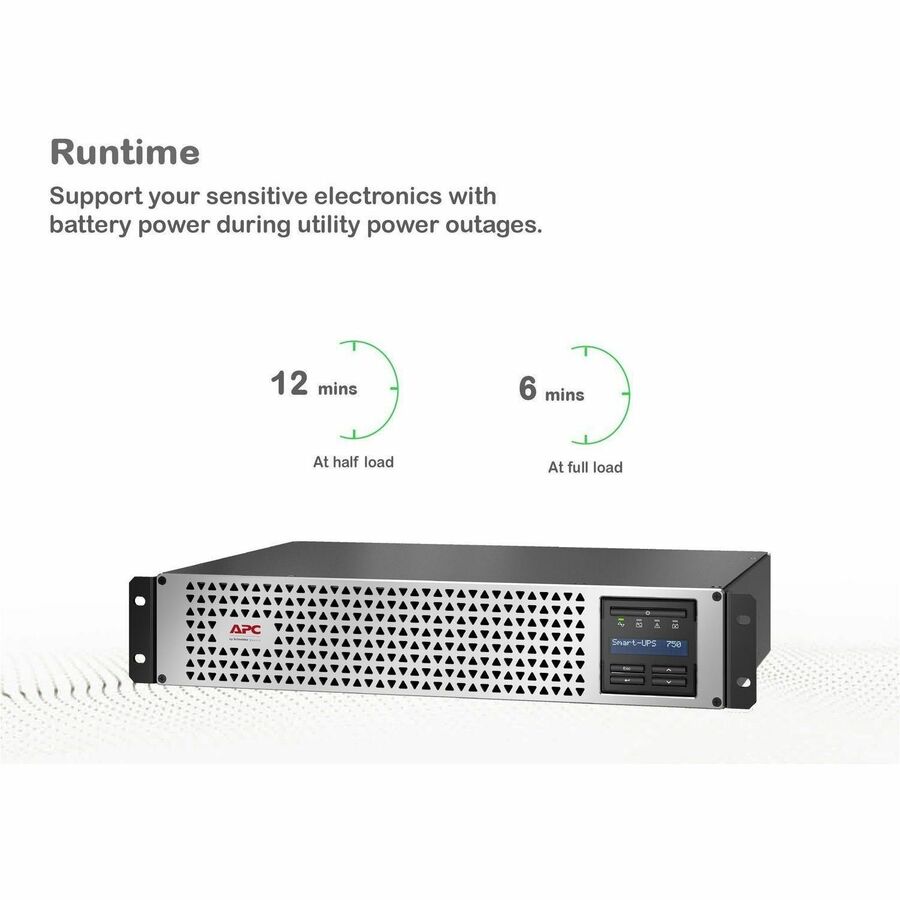

Backup/Run Time (Full Load)
|
5.70 Minute |
|
Backup/Run Time (Half Load)
|
13.80 Minute |
|
Typical Battery Recharge Time
|
3 Hour |
|
Hot Swappable
|
Yes |
|
Replaceable Battery
|
Yes |
|
Environmental Conditions
|
|
Maximum Operating Temperature
|
104°F (40°C) |
|
Storage Temperature
|
-40°F (-40°C) - 95°F (35°C) |
|
Maximum Operating Elevation
|
10000 ft |
|
Maximum Storage Elevation
|
25000 ft |
|
Operating Humidity
|
0% - 95% |
|
Storage Relative Humidity
|
0% - 95% |
|
Sound Emission (A-Weighted)
|
41 dB(A) |
|
Thermal Dissipation
|
20.51 W |
|
Physical Characteristics
|
|
Color Family
|
Dual Color |
|
Product Color
|
|
|

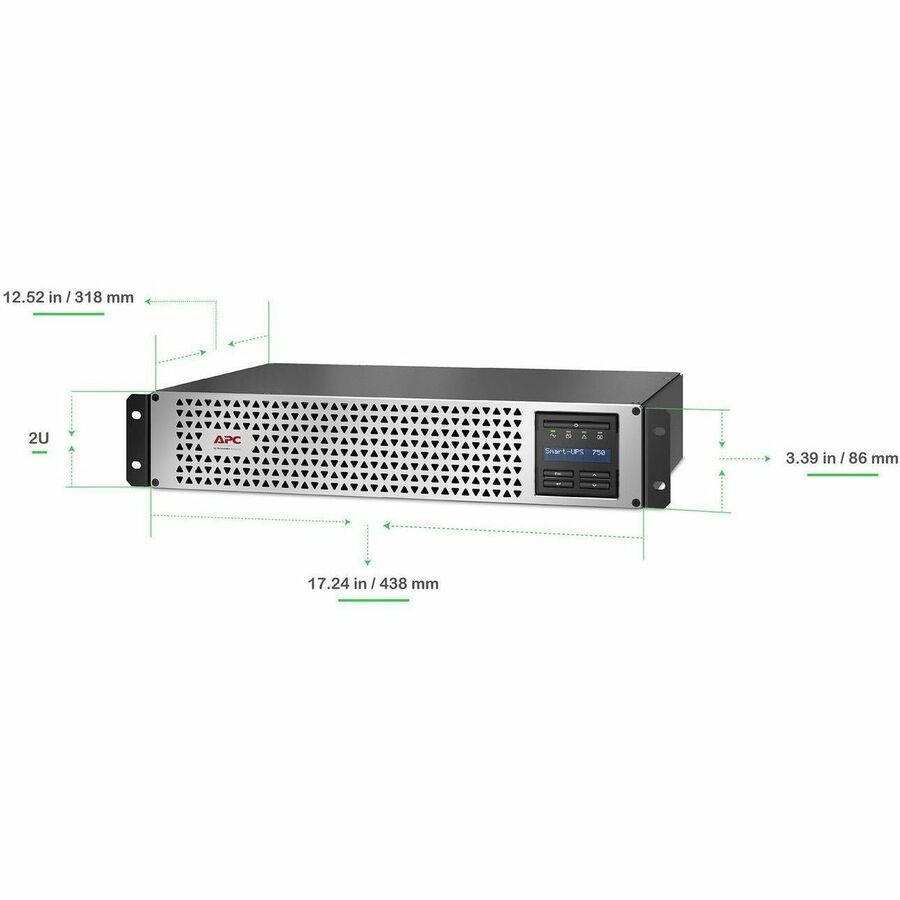

Height
|
3.4" |
|
Width
|
17.2" |
|
Depth
|
12.5" |
|
Rack Height
|
2U |
|
Form Factor
|
Rack-mountable |
|
Mounting Preference
|
Lower |
|
Weight (Approximate)
|
34 lb |
|
Miscellaneous
|
|
For Country/Region
|
United States |
|
Package Contents
|
Smart-UPS SMTL750RM2UC Rack-mountable 750VA UPS CD with softwareDocumentation CDInstallation guideRack mounting support railsSmart UPS signalling RS-232 cableUSB cable |
|
Certifications & Standards
|
NOM |
|
Software Included
|
Powerchute Serial Edition |
|
Optimized Energy Efficiency
|
Yes |
|
Product Take Back Program
|
Yes |
|
Mercury Free
|
Yes |
|
RoHS Exemption Information
|
https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMTL750RM2UC_ROHS_DECLARATION&p_FileName=SMTL750RM2UCKIT_ROHS_DECLARATION_US.pdf
|
|
REACH Declaration URL
|
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=511500682&lang=en-us
|
|
EU RoHS Declaration URL
|
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=511500682&lang=en-us
|
|
Environmental Profile Availability
|
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1812001EN
|
|
End of Life Manual Availability
|
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1812001_EN
|
|
REACH free of SVHC
|
No |
|
WEEE Statement
|
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
|
Country of Origin
|
Philippines |
|
Environmentally Friendly
|
Yes |
|
Environmental Compliance
|
Restriction of Hazardous Substances (RoHS) |
|
Warranty
|
|
Limited Warranty
|
5 Year |
|
Directly Connected Equipment Guarantee
|
$150000 Lifetime |
