General Information
|
|
Manufacturer
|
Schneider Electric SA |
|
Manufacturer Part Number
|
AP9559 |
|
Manufacturer Website Address
|
http://www.schneider-electric.com
|
|
Brand Name
|
APC by Schneider Electric |
|
Product Line
|
NetShelter |
|
Product Name
|
NetShelter 12-Outlets PDU |
|
Marketing Information
|

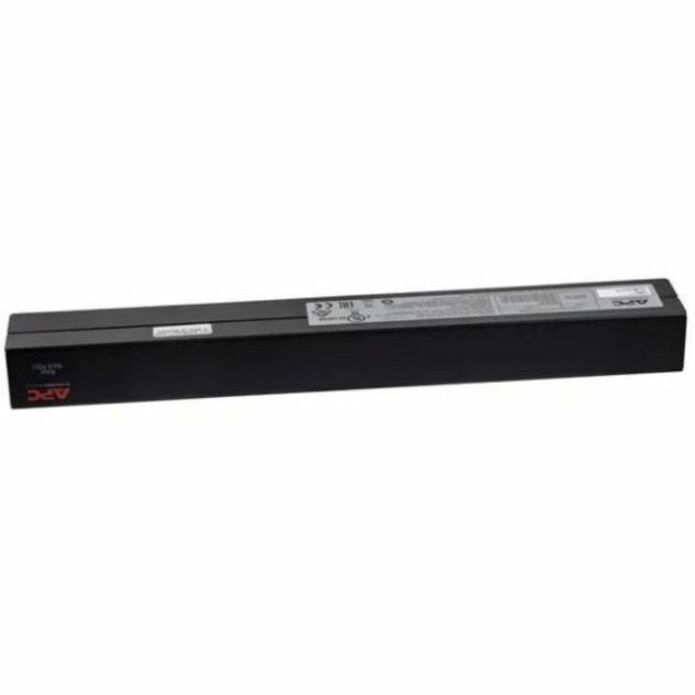

It is a basic rack PDU with a 1U horizontal mounting design. It supports a maximum input current of 16A and operates at 208 and 230V. The PDU features 10 IEC 60320 C13 outlets and 2 IEC 60320 C19 outlets, providing flexibility for connecting various IT equipment. It includes an 8.2-foot power cord with an IEC 60320 C20 plug. The unit is designed for reliable power distribution and includes rack mounting brackets and a user manual. |
|
Packaged Quantity
|
1 Each |
|
Product Type
|
PDU |
|
Technical Information
|
|
PDU Type
|
Basic |
|
Plug/Connector Type
|
IEC 60320 C20 |
|
Plug/Connector Detail
|
1 x IEC 60320 C20 |
|
Receptacle Type
|
- IEC 60320 C13
- IEC 60320 C19
|
|
Receptacle Detail
|
- 10 x IEC 60320 C13
- 2 x IEC 60320 C19
|
|
Load Capacity (VA)
|
3680 W |
|
Power Description
|
|
Input Voltage
|
|
|
Input Voltage Range
|
90 V AC - 250 V AC |
|
Output Voltage
|
|
|
Input Current
|
16 A |
|
Input Frequency
|
60 Hz |
|
Physical Characteristics
|
|
Color Family
|
Black |
|
Product Color
|
Black |
|
Mounting Orientation
|
Horizontal |
|
Mounting Preference
|
No Preference |
|
Mount Type
|
Rack-mountable |
|
Rack Height
|
1U |
|
Cord Length
|
8.17 ft |
|
Height
|
1.7" |
|
Width
|
17.6" |
|
Depth
|
2.2" |
|
Weight (Approximate)
|
2.16 lb |
|
Environmental Conditions
|
|
Minimum Operating Temperature
|
32°F (0°C) |
|
Maximum Operating Temperature
|
113°F (45°C) |
|
Minimum Storage Temperature
|
-13°F (-25°C) |
|
Maximum Storage Temperature
|
149°F (65°C) |
|
Minimum Operating Humidity
|
0% |
|
Maximum Operating Humidity
|
95% |
|
Miscellaneous
|
|
For Country/Region
|
United States |
|
Package Contents
|
- NetShelter 12-Outlets PDU
- User Manual
- Rack Mounting Brackets
|
|
Additional Information
|
- Maximum Line Current per phase: 16 A
- Always on Outlets: 12
|
|
Certifications & Standards
|
- cUL Listed
- CE
- UL Listed
- VDE
- Victoria
|
|
Optimized Energy Efficiency
|
Yes |
|
Product Take Back Program
|
No |
|
REACH free of SVHC
|
Yes |
|
Lead Free
|
Yes |
|
REACH Declaration URL
|
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=759556&lang=en-us
|
|
EU RoHS Declaration URL
|
https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=759556&lang=en-us
|
|
Environmental Profile Availability
|
https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1512009EN
|
|
End of Life Manual Availability
|
https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1512009_EN
|
|
WEEE Statement
|
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
|
Country of Origin
|
Philippines |
|
Environmentally Friendly
|
Yes |
|
Environmental Compliance
|
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
|
|
Warranty
|
|
Limited Warranty
|
2 Year |
|
Parts Warranty/Labor
|
2 Year |
